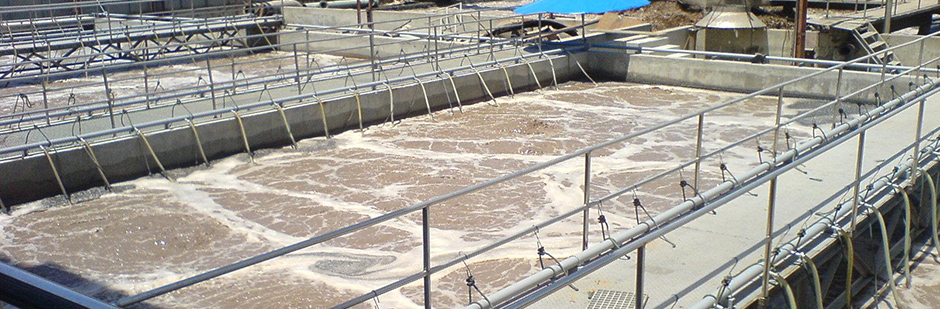

Diffused Aeration System

Aeration is the heart of any Wastewater treatment plant. Conventional aeration methods consume a lot of power besides frequent maintenance hassles. The limited oxygen transfer always led to addition of tanks, addition of aerators and/or replacement with higher hp rating ones. In Diffused Aeration System, a number of membrane diffusers are installed at the bottom of the tank covering the maximum possible area. Air from twin lobe compressor(s) is supplied to the diffusers, generating a multitude of fine bubbles (about 1 to 1.5 mm in diameter). While slowly moving upward towards the surface of water, as the fine bubbles have more contact area with water, transfer maximum oxygen contained in them. The higher oxygen transfer leads to healthy growth of microorganisms to digest the organic matter in the wastewater. In addition, it enhances in evaporation of volatile substances and nitrification.

Advantages of Diffused aeration :

Standard Oxygen Transfer Efficiency (SOTE) ranges from 18 to 35% depending on the depth of aeration tank (varies from 5.25 to 7% per metre water depth)
Oxygen transfer per kWh would be 2.5 kg and can go as high as 7 kg.
DO will be uniform throughout the tank.
As the particles are always in suspension, no sludge buildup at the bottom of the tank.
Almost 1.5 to 2 times the volume of effluent can be treated in the same aeration tank as that of the one with mechanical aerators.
Very low or No maintenance as no rotating components.
As the power consumption reduces by about 30 to 60%, even if existing aerators are replaced by this system, it will pay back in 8 to 15 months.

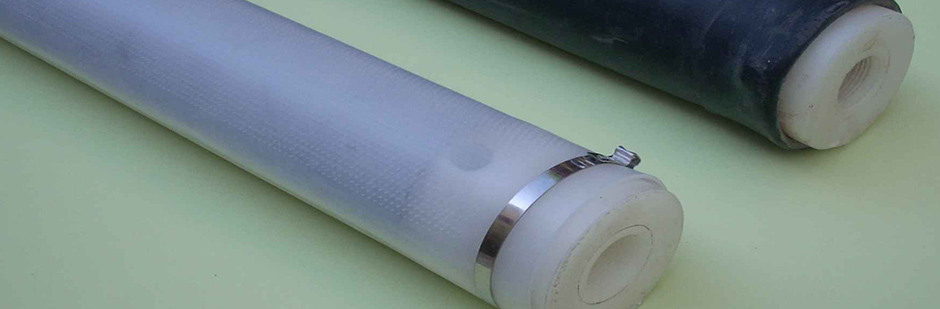

Ecotube Diffuser :

Specification :

Model	*ECOTUBE 2010*	*ECOTUBE 3010 (MOQ : 500 pcs)*

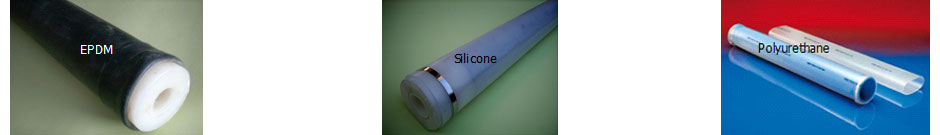

Suffix	*S – Silicone; E – EPDM, P – Polyurethane*	*S – Silicone; E – EPDM, P – Polyurethane*
Size:	*68 mm OD x 1000 mm long*	*95 mm OD x 1000 mm long*
Membrane:	*MOC: Silicone / EPDM / Polyurethane*	*MOC: Silicone / EPDM / Polyurethane*
	*Slit size: normally 1 mm* *(can offer any slit size 0.6 - 3 mm)* *(Min order quantity : 500 pcs)*	*Slit size: normally 1 mm* *(can offer any slit size 0.6 - 3 mm)* *(Min order quantity : 500 pcs.)*
	*No of slits / mtr: 10,200 + 5% Nos*	*No of slits / mtr: 15,600 + 5% Nos*
Hub:	*Polypropylene with ¾” BSP inlet (1” on request)*	*Polypropylene with ¾” BSP inlet*
Support:	*R PVC pipe 6 kg pressure rating*	*R PVC pipe 6 kg pressure rating*
Clamps:	*SS 316 step-less clamps*	*SS 316 step-less clamps*
Air flow:	*Recommended: 8.5 to 10 cum/hr (continuous)* *Maximum upto 15 cum/hr (intermittent)*	*Recommended: 10 to 12.5 cum/hr (continuous)* *Maximum upto 18 cum/hr (intermittent)*
Pressure:	*Recommended: Water depth + 500 mm WC* *Can withstand upto 1.0 kg/cm2*	*Recommended: Water depth + 500 mm WC* *Can withstand upto 1.0 kg/cm2*
SOTE:	*< 3 mtr SWD : 4.75 to 5.5% per mtr*	*< 3 mtr SWD : 4.75 to 5.5% per mtr*
	*> 3 mtr : 5.25 to 6.75% per mtr submergence*	*> 3 mtr : 5.25 to 6.75% per mtr submergence*
Alt:	*ECOTUBE 2003 (68 OD x 320 mm long)* *ECOTUBE 2005 (68 OD x 500 mm long)* *ECOTUBE 2006 (68 OD x 620 mm long) (MOQ)* *ECOTUBE 2008 (68 OD x 750 mm long) (MOQ)***	*ECOTUBE 3003 (95 OD x 320 mm long)* *ECOTUBE 3005 (95 OD x 500 mm long)* *ECOTUBE 3006 (95 OD x 620 mm long) (MOQ)* *ECOTUBE 3008 (95 OD x 750 mm long) (MOQ)*

EcoDisc

Our ECODISC 316 Diffusers are of Disc Type available only in 316 mm diameter, EPDM membrane PP base (inlet 1”BSPF) and SS 304 clamp with unique features:

100% active membrane area as the clamp is on the side circumference.
A spring is provided at the inlet (bottom), which acts as NRV to prevent backflow.
Recommended air flow for Continuous operation: 3 – 5 m3/hr.
SOTE: from 5 to 7.25 % per meter submergence at 15% diffuser density above 4.5 m water depth.
